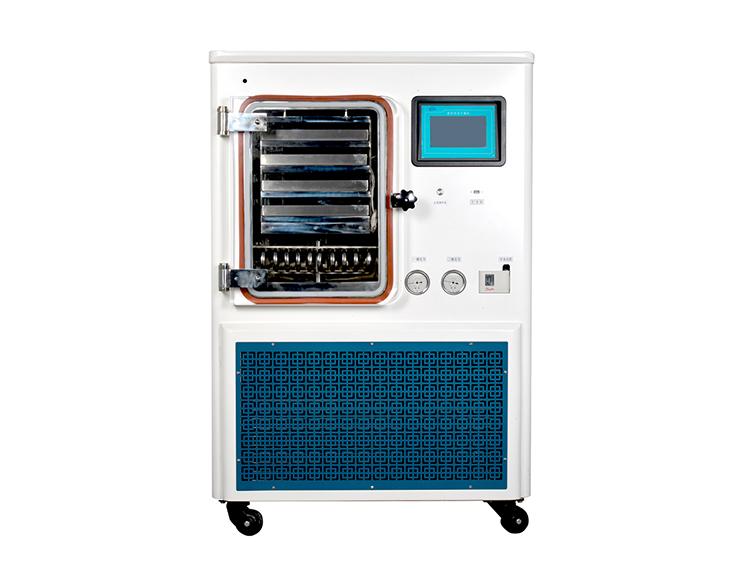

Pilot Lyophilizers and freeze dryers from 0-5 square meter
| Model | TKDGJ-1A | TKDGJ-3A | TKDGJ-5A |
| Usable Shelf Area(m²) | 1m² | 3m² | 5m² |
| Reference Loading Capacity(kg/batch) |
10kg | 30kg | 50kg |
| Shelf Dimensions:(W)*(D)m | 0.6*0.42 | 0.6*0.84 | 1*0.63 |
| Number of shelves | 4 | 6 | 8 |
| Number of Lyophilized Working Chamber | 1 | 1 | 1 |
| Catching water Capaity 24Hr/day | 15kg | 45kg | 75kg |
| Overal Area of equipment unit (m²) | 5m² | 7m² | 12m² |
| Energy Consumption per hour(kw) | 5kw | 12kw | 18kw |
| Rotary vane pump Roots pump |
1 | 1 | 1 |
| 0 | 0 | 1 | |
| Vacuum Limit | ≤1~5Pa | ≤1~5Pa | ≤1~5Pa |
| Refrigeration Unit | 6HP | 12HP | 18HP |
| Heating mode | Low viscosity silicon oil | Low viscosity silicon oil | Low viscosity silicon oil |
Description
Lyophilizers and freeze dryers for pharmaceutical industry
According to customer needs,we can design and manufacture suitable type for rapid lyophilization cycle development, optimization, and scale-up, which incorporates the very latest innovations in freeze-drying technology to protect valuable product by ensuring precise process control and robust reliability. It the broadest lyophilization range available – covering cycle development, stability, pilot and clinical batch production, it can be also designed and added with CIP,SIP, glanding, filling – complete pharmaceutical manufacturing system, to achievefull aseptic manufacturing and commercial production batches.
Application:
Drug companies
Healthcare providers
Medical device manufacturers
Biotechnology businesses
Cleanroom applications Research & laboratory use
Technical Parameters of MKK Pharmaceutical Grade Vacuum Lyophilizer :
Cold trap temperatures:-75℃ to -80℃
Material loading capacity:From 0-50Kg
TKDGJ-1A shelf area: 1m²,loading: 0-10kg,power:5kw
TKDGJ-3A shelf area:3m²,loading: 10-30kg,power:12kw
TKDGJ-5A shelf area:5m²,loading: 30-50kg,power:18kw
| Technical Parameters of MKK Pharmaceutical Grade Vacuum Lyophilizer (for reference only,detail as customized requests) |
|||||||||||
| Material plate material | 304 stainless steel or 316/316L stainless steel (optional) | ||||||||||
| Chamber material | 304 stainless steel or 316/316L stainless steel (optional) | ||||||||||
| Shelf material | stainless steel or aluminum alloy (newly developed thermal conductivity structure ny MKK) | ||||||||||
| Material of lyophilized water trap system |
Stainless steel or aluminum alloy (newly developed by MKK R&D department in year 2020) | ||||||||||
| Working Mode | Freezing mode, vacuum mode, freeze-drying mode | ||||||||||
| Power Requirement | AC380V/50Hz ,3 phase,or as customization | ||||||||||
| Freezing Medium | R404/R23(fluoroform/Trifluoromethane/molecular ,formula:CHF3. CAS No.: 75-46-7) | ||||||||||
| Freeze Drying Working period per batch |
4-20Hr(For reference only, the time is determined according to the moisture content and thickness of the product) | ||||||||||
| Shelf Tempreture | -40℃ to +120℃ | ||||||||||
| Cold trap temperatures | -75℃ to -80℃ | ||||||||||
| Vacuum | ≤50Pa | ||||||||||
| Control Mode | MKK customized freeze-drying equipment automation system (in Siemens brand PLC automatic programming system, 10-inch touch display and control screen that could show process, curve analysis diagram, record and other functions) | ||||||||||
